本公司生產近30類，計140多種攪拌器，從最常見的（包括已有的HB5標準，SB90標準各種攪拌器）到各種復雜形狀或特殊用途的攪拌器。可按H/T2123-91標準的各種規格尺寸系列制造，也可根據用戶生產工藝需求，代為設計制造各種特殊要求、特殊規格或特殊用途的攪拌器。
攪拌器型號標注方法：
材料代號
攪拌器軸孔徑
攪拌器的外徑，
攪拌器型式代號
六斜葉開啟渦輪式攪拌器
六斜葉整體開啟渦輪式XK、六斜葉可拆開啟渦輪式XKK、六斜葉穩定環開啟渦輪式XKW、六斜窄葉整體開啟渦輪式XZK、六斜窄葉可拆開啟渦輪式XKZ、六斜窄葉穩定開啟渦輪式XZW
本類攪拌器與直葉開啟渦輪式比較，除有徑向流外有軸向分流，剪切性能介于直葉和彎葉之間，所以它具有較優的綜合性能、分散、固體、懸浮、固體溶解都較適合，其它過程也能應用，運作條件同六直葉開啟渦輪。

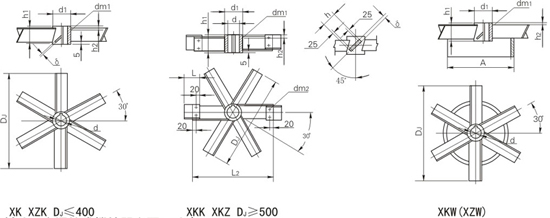

斜葉開啟渦輪式攪拌器主要尺寸表
DJ
d
d1
h2
A
L
L2
dm1/dm2
寬形
窄形
δ
寬形重量
窄形重量
h
h1
N/n≤
h
h1
N/n≤
碳鋼/不銹鋼
150
30
55
12
100
-
-
M12/-
30
55
0.008
20
50
0.0035
6/5
1.1/1.05
0.924/0.914
35
60
1.1/1.05
0.1/0.994
200
30
55
12
140
-
-
M12/-
40
60
0.008
25
55
0.0045
6/5
1.55/1.42
1.233/1.186
40
60
1.57/1.44
1.19/1.142
250
35
55
12
170
-
-
M12/-
50
70
0.011
30
55
0.008
6/5
2.67/2.44
1.438/1.338
40
70
2.68/2.47
1.946/1.868
300
40
70
12
200
-
-
M12/-
60
76
0.018
40
70
0.015
8/5
4.23/3.22
3.12/2.562
45
75
4.26/3.29
3.25/2.689
50
80
4.33/3.37
3.379/2.834
400
45
80
12
270
-
-
M12/-
80
90
0.031
50
80
0.025
8/6
7.3/6.1
5.125/4.506
50
85
7.37/6.18
5.297/4.686
55
90
7.54/6.37
5.469/4.867
500
60
95
16
340
100
380
M16/-M12
100
106
0.089
65
95
0.06
10/8
13.96/11.92
9.301/8.267
65
100
14.1/12.06
9.505/8.481
70
105
14.17/12.17
9.710/8.696
600
65
105
16
400
130
420
M16/-M12
120
120
0.11
75
100
0.08
12/10
23.35/20.34
14.578/13.111
70
110
23.42/20.44
14.825/13.371
80
120
23.66/20.74
15.318/13.888
700
70
115
16
470
180
420
M16/-M12
140
140
0.15
90
110
0.1
12/10
31.75/27.7
20.271/18.193
80
120
32.33/28.3
20.881/18.834
90
135
32.36/28.47
21.492/19.475
800
75
120
18
540
200
480
M16/-M12
160
160
0.23
100
120
0.18
14/12
42.97/39.93
27.91/26.08
85
140
46.53/43.66
30.58/28.87
95
160
49.74/47.00
32.96/31.38
900
80
130
18
600
250
480
M16/-M12
180
180
0.26
115
130
0.21
14/12
55.69/51.25
35.96/33.62
90
150
60.02/55.58
39.08/36.9
100
160
61.20/56.76
39.94/37.8
1000
90
150
18
670
300
480
M16/-M12
200
200
0.29
125
150
0.23
14/12
72.48/67.96
42.52/44.16
100
160
73.79/69.34
48.5/45.86
110
180
79.75/75.6
52.97/50.55
1120
100
160
20
750
360
480
M18/M16
225
225
0.43
140
160
0.34
16/14
99.93/94.65
64.34/61.08
110
180
106.6/101.7
69.11/66.09
120
190
108.6/103.7
70.49/67.54
1250
110
180
20
840
430
480
M18/M16
250
250
0.47
160
180
0.38
16/14
130.2/123.8
84.33/80.54
120
190
132.3/126.1
85.88/82.17
130
200
134.5/128.3
87.44/83.8
1400
120
190
20
940
500
480
M18/M16
280
280
0.53
175
196
0.42
16/14
163/154.8
103.9/98.87
130
200
165.5/157.3
105.5/100.5
140
210
167.9/159.9
107.2/102.3
1600
130
200
25
1070
300
480
M18/M16
320
320
0.77
200
200
0.62
18/16
232.8/222.6
145.5/137.7
140
210
235.5/225.5
147.2/140.9
150
220
238.3/228.4
148.9/142.7
1800
140
210
25
1200
720
480
M18/M16
360
360
0.86
225
210
0.69
18/16
294/283.8
181.5/171.5
150
220
297.1/287
183.3/175
160
240
310.7/301.3
191.2/183.3
2000
150
220
25
1340
820
480
M20/M18
400
400
0.96
250
240
0.77
18/16
363.8/344.4
224.9/214.4
160
240
378.8/360.2
233.9/223.9
170
250
382.7/364.3
236.3/226.4
2240
160
240
30
1500
940
480
M20/M18
450
450
1.32
280
260
1.1
20/18
508.7/489.9
313.7/301.8
170
250
513.1/494.6
316.3/304.5
180
260
517.5/499.3
318.9/307.2
2500
170
250
30
1670
1070
480
M20/M18
500
500
1.47
315
280
1.18
20/18
631.1/607.2
387.7/372.2
180
260
636/612.4
390.5/375.4
190
270
641/617.6
393.2/378.3
備注：攪拌器內孔可根據用戶要求制作，輪轂高度一般與內孔相一致。
